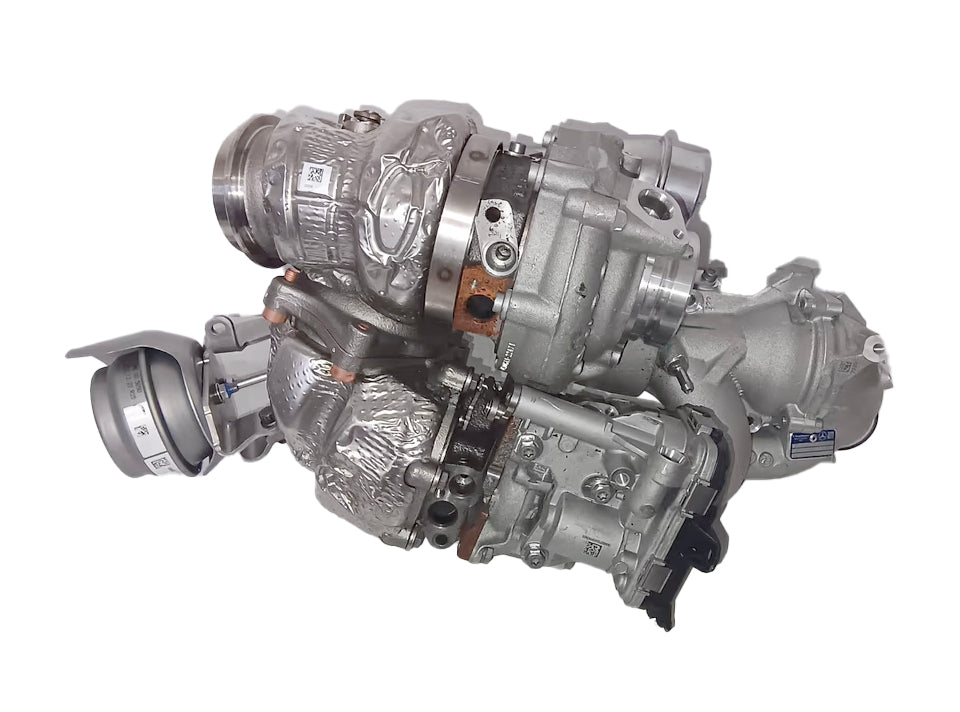

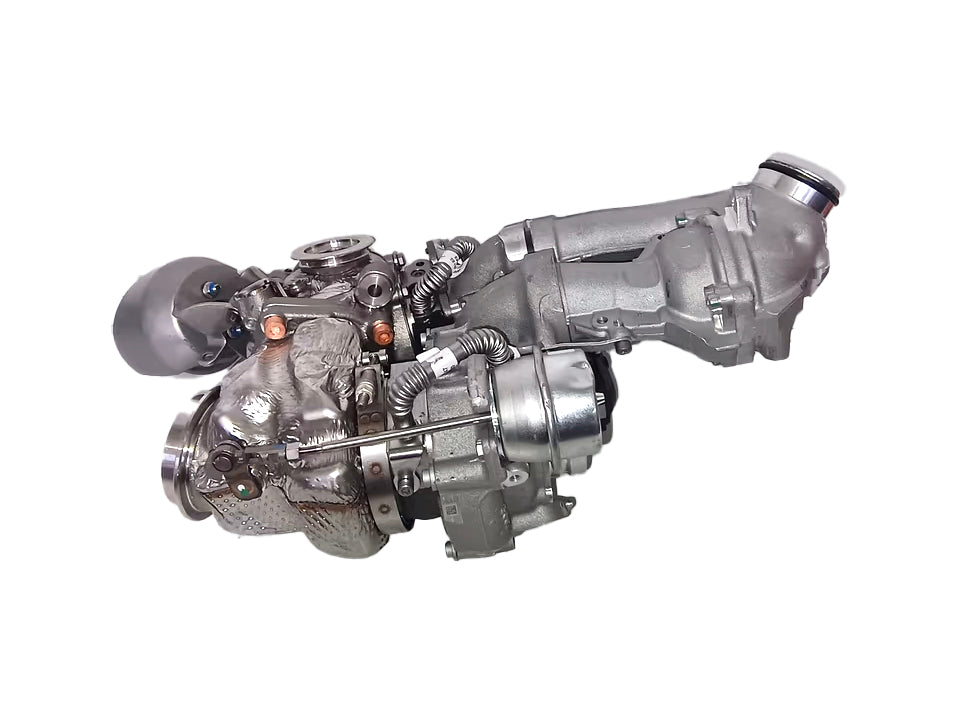

Mercedes Sprinter Turbocharger – Genuine OEM | VS30 2.0L OM654 High Output Diesel | #6540909001 (2023–2025)

A failing turbocharger on a VS30 Sprinter doesn't just rob power — it can push oil into the intake, foul the intercooler, and cause progressive engine damage that turns a turbo replacement into a full engine job. This is the Genuine Mercedes-Benz OEM turbocharger for VS30 Sprinters equipped with the high-output 2.0L OM654 diesel engine, a direct replacement that restores factory boost pressure, throttle response, and power delivery.

What This Part Does

The turbocharger uses exhaust gas energy to spin a compressor wheel that forces additional air into the intake manifold, allowing the engine to burn more fuel and produce significantly more power than a naturally aspirated engine of the same displacement. On the OM654, the turbo operates in conjunction with the engine's variable geometry turbine system under ECU control to deliver precise boost across the RPM range. When the turbo's shaft bearings wear, the compressor or turbine wheel contacts the housing, or the wastegate actuator fails, boost pressure drops — triggering reduced power, fault codes, and in severe cases, oil consumption and blue smoke from the exhaust.

Common Symptoms of a Failing Turbocharger

• Noticeable loss of power, especially under load or at highway speeds
• Slow or delayed throttle response with reduced acceleration
• Excessive black or blue smoke from the exhaust at startup or under boost
• Whistling, whining, or rattling noise from the turbo area under acceleration
• Boost pressure fault codes or engine entering limp mode
• Oil consumption with no visible external leak

When to Replace

Replace when shaft play is confirmed, when the turbo produces abnormal noise under boost, or when boost pressure fault codes persist after ruling out hoses, actuators, and charge air leaks. Also replace when oil contamination in the intake tract or intercooler is traced back to turbo seal failure.

VS30 OM654 High Output Specific — VIN Verification Required

This turbocharger is for VS30 Sprinters equipped with the high-output 2.0L OM654 diesel engine. It is not compatible with the standard-output OM654, the 3.0L OM642, or NCV3 Sprinters. Turbocharger part numbers vary by engine tune and emissions configuration — always verify your engine code and VIN before ordering. Contact us and we'll confirm fitment before you buy.

Fitment

• 2023–2025 Mercedes-Benz Sprinter 1500 – 2.0L OM654 High Output Diesel (VS30)
• 2023–2025 Mercedes-Benz Sprinter 2500 – 2.0L OM654 High Output Diesel (VS30)
• 2023–2025 Mercedes-Benz Sprinter 3500 – 2.0L OM654 High Output Diesel (VS30)
• 2023–2025 Mercedes-Benz Sprinter 3500XD – 2.0L OM654 High Output Diesel (VS30)

Part Numbers

• Mercedes OEM: 6540909001 / A6540909001 / 654-090-90-01
• Manufacturer: Genuine Mercedes-Benz
• SKU: 6540909001OE
