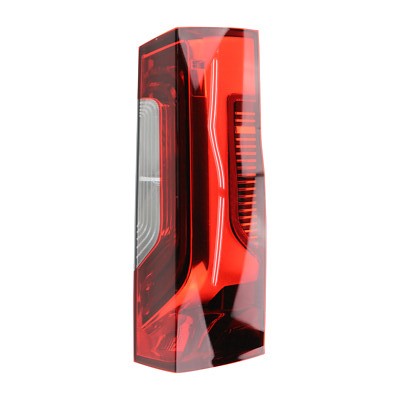

Mercedes Sprinter Right Tail Light Assembly – Hella | VS30 1500 / 2500 / 3500 / 3500XD | #9108205500 (2019–2025)

A cracked, shattered, or non-functioning right tail light assembly on a VS30 Sprinter is both a safety hazard and an immediate equipment violation — brake lights, turn signals, and running lights are legally required, and a damaged lens or failed LED array puts the van out of compliance the moment it leaves the yard. This is the Hella right tail light assembly with partial LED for VS30 Sprinters equipped with the partial LED lighting package, a direct OEM replacement that restores full rear lighting function and proper visibility on the right rear corner.

What This Part Does

The right tail light assembly is the complete rear lighting unit on the passenger side of the VS30 Sprinter. It integrates multiple lighting functions into a single sealed housing — the LED running light strip, incandescent brake light, incandescent reverse light, and turn signal — all wired through a single multi-pin connector to the van's rear lighting circuit. On the VS30 with the partial LED configuration, the assembly uses an LED accent strip for the parking and running light function while retaining conventional bulbs for the brake and signal circuits. The assembly mounts to the rear body panel via three bolts and a fixed alignment clip, and the lens is molded in a tinted red and clear lens configuration that splits the brake, signal, and reverse light zones visually. When the lens cracks from road debris, the LED strip fails, or the housing seal degrades and allows moisture intrusion that fogs the lens and corrodes the bulb sockets, the assembly must be replaced as a complete unit.

Common Symptoms of a Failing Right Tail Light Assembly

• Brake light, turn signal, or running light out on the right rear corner — confirmed at the assembly rather than a blown fuse
• Cracked, shattered, or penetrated lens from road debris or a minor impact
• Moisture or condensation inside the lens that fogs the interior and indicates a failed housing seal
• Corrosion at the bulb sockets or connector from water intrusion
• LED strip that is dim, partially illuminated, or completely dark while other functions work

When to Replace

Replace when the lens is cracked or damaged, when moisture intrusion has compromised the housing seal, or when a lighting function cannot be restored by bulb replacement alone. The assembly is replaced as a complete unit — individual lens sections and LED strips are not serviced separately.

VS30 Specific — VIN Verification Required

This assembly is for VS30 Sprinters with the partial LED tail light configuration. VS30 Sprinters were available with multiple tail light configurations — halogen-only, partial LED, and full LED — and the assemblies are not interchangeable between configurations. Always verify your existing tail light configuration and VIN before ordering. Contact us and we'll confirm fitment before you buy.

Fitment

• 2019–2025 Mercedes-Benz Sprinter 1500 – Right rear, partial LED (VS30/W907)
• 2019–2025 Mercedes-Benz Sprinter 2500 – Right rear, partial LED (VS30/W907)
• 2019–2025 Mercedes-Benz Sprinter 3500 – Right rear, partial LED (VS30/W907)
• 2019–2025 Mercedes-Benz Sprinter 3500XD – Right rear, partial LED (VS30/W907)

✔ Right (passenger) side only — left side requires #9108205400
✔ Partial LED configuration only — verify your tail light type before ordering
✔ Always verify VIN and existing tail light configuration before ordering

Part Numbers

• Mercedes OEM: 9108205500 / A9108205500 / 910-820-55-00
• Paired left assembly: 9108205400
• Manufacturer: Hella
• SKU: 9108205500
