Mercedes Sprinter Front Brake Rotor – Zimmermann OEM | NCV3 300mm | #9064210012 (2007–2018)

DESCRIPTION:

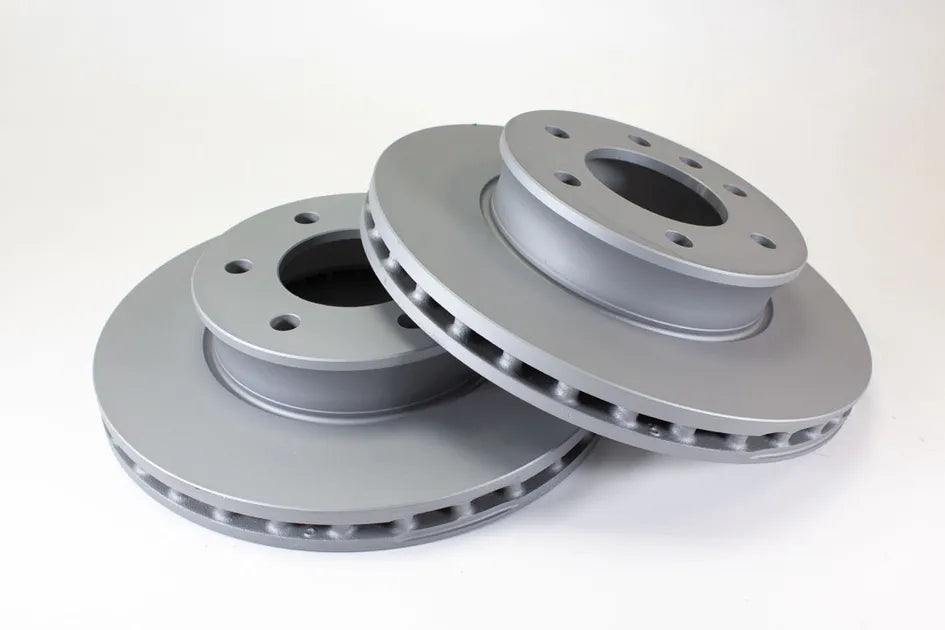

Worn or warped front brake rotors are one of the most common causes of brake pulsation, vibration through the steering wheel, and extended stopping distances on a Sprinter. When the rotor surface becomes uneven from heat cycling, wear, or scoring from worn pads, no amount of pad replacement will restore a smooth, confident pedal feel. This is the Zimmermann OEM front vented brake rotor for the NCV3 Sprinter — a direct-fit 300mm replacement that restores a true braking surface and factory stopping performance. Sold individually — always replace in axle pairs.

What This Part Does

The front brake rotor is the disc that the brake caliper clamps against to create stopping force. It's a vented design — with internal air passages between the two rotor faces — to dissipate the enormous heat generated during braking. A rotor that has worn below minimum thickness, developed deep scoring, or warped from heat cannot provide a consistent braking surface, leading to pulsation, vibration, and fade under heavy braking.

Rotor Specifications

• Outer diameter: 300mm
• Type: Vented disc
• Position: Front axle, left or right

Why Zimmermann

Otto Zimmermann GmbH is one of Europe's premier brake component manufacturers, supplying OE-quality rotors to European automakers for over six decades. Their rotors are manufactured to the same dimensional and metallurgical specifications as factory parts, ensuring predictable brake performance, proper pad bedding, and long service life.

When to Replace

Replace rotors when thickness falls below the minimum specification, when scoring or grooving is deeper than 1mm, when the rotor surface shows signs of heat cracking, or any time new pads are installed on rotors with significant wear. Rotors must always be replaced in axle pairs — mismatched rotor wear causes uneven braking and brake pull.

Fitment

• 2007–2009 Dodge Sprinter 2500/3500 – Front Axle
• 2007–2018 Freightliner Sprinter 2500/3500 – Front Axle
• 2010–2018 Mercedes-Benz Sprinter 1500 – Front Axle
• 2010–2018 Mercedes-Benz Sprinter 2500 – Front Axle
• 2010–2018 Mercedes-Benz Sprinter 3500 – Front Axle
• 2018 Mercedes-Benz Sprinter 3500XD – Front Axle

Always verify your brake configuration and VIN before ordering. Contact us and we'll confirm fitment before you buy.

Part Numbers

• Mercedes OEM: 9064210012 / A9064210012 / 906-421-00-12
• Zimmermann: 400.6476.20
• Cross Reference: 68006716AA, 27698, 1072649
• SKU: 9064210012Z
