Mercedes Sprinter Front Stabilizer Bar Bushing Kit 20mm – Meyle | NCV3 | #9063233785 (2007–2018)

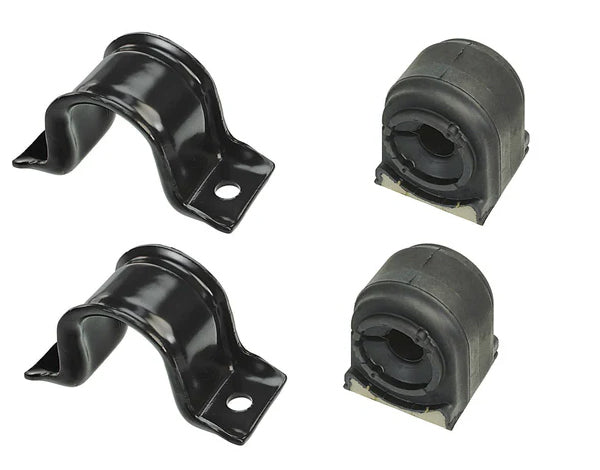

Worn or hardened front stabilizer bar bushings on a NCV3 Sprinter allow the sway bar to clunk against its brackets under load changes, reduce body roll resistance, and transmit road vibration into the cabin through a connection point that should be isolating it. This is the Meyle front stabilizer bar bushing kit in 20mm diameter for NCV3 Sprinters equipped with the heavy-duty front stabilizer bar, a pair of bushings for a complete front stabilizer bar service.

What This Part Does

The front stabilizer bar bushings are rubber-lined clamp bushings that secure the front sway bar to the chassis at two mounting points. They allow the bar to rotate within their bore as the suspension cycles while cushioning the bar against the chassis and isolating the torsional resistance forces it generates during cornering. On the heavy-duty 20mm bar — used on higher GVW Sprinter configurations — the bushing bore and rubber compound are sized for the larger bar diameter and the additional stiffness it provides. Meyle produces these bushings to OE specification with their HD rubber compound formulation, which is engineered for improved resistance to hardening and cracking compared to the original rubber. When the bushings degrade, the bar clunks in its mounts and handling precision is reduced.

Common Symptoms of Worn Stabilizer Bar Bushings

• Clunking or knocking from the front of the van during cornering or rough roads
• Increased body roll compared to earlier service life
• Squeaking from the front suspension during slow turns
• Visible cracking, hardening, or separation of the bushing rubber during inspection

When to Replace

Replace when bushings show visible deterioration or when clunking is confirmed to the stabilizer bar mounts. Always replace both front bushings simultaneously for even support and matched wear characteristics.

NCV3 Specific — Verify Stabilizer Bar Diameter Before Ordering

This bushing kit is for NCV3 Sprinters with a 20mm front stabilizer bar (heavy duty). Sprinters with the standard 16mm bar require the 9063233585 kit. Always measure your bar diameter or verify by VIN before ordering. Contact us and we'll confirm fitment before you buy.

Fitment

• 2007–2018 Mercedes-Benz Sprinter 2500 – Front stabilizer bar, 20mm (NCV3/W906)
• 2007–2018 Mercedes-Benz Sprinter 3500 – Front stabilizer bar, 20mm (NCV3/W906)
• 2007–2009 Dodge Sprinter 2500 / 3500 – Front stabilizer bar, 20mm (NCV3)
• 2007–2018 Freightliner Sprinter 2500 / 3500 – Front stabilizer bar, 20mm (NCV3)

✔ 20mm diameter — for heavy-duty front stabilizer bar
✔ Kit of 2 bushings — left and right mounting positions
✔ Verify bar diameter before ordering — 16mm bar requires #9063233585

Part Numbers

• Mercedes OEM: 9063233785 / A9063233785 / 906-323-37-85
• Manufacturer: Meyle — 100 615 0011/S
• SKU: 9063233785KIT
