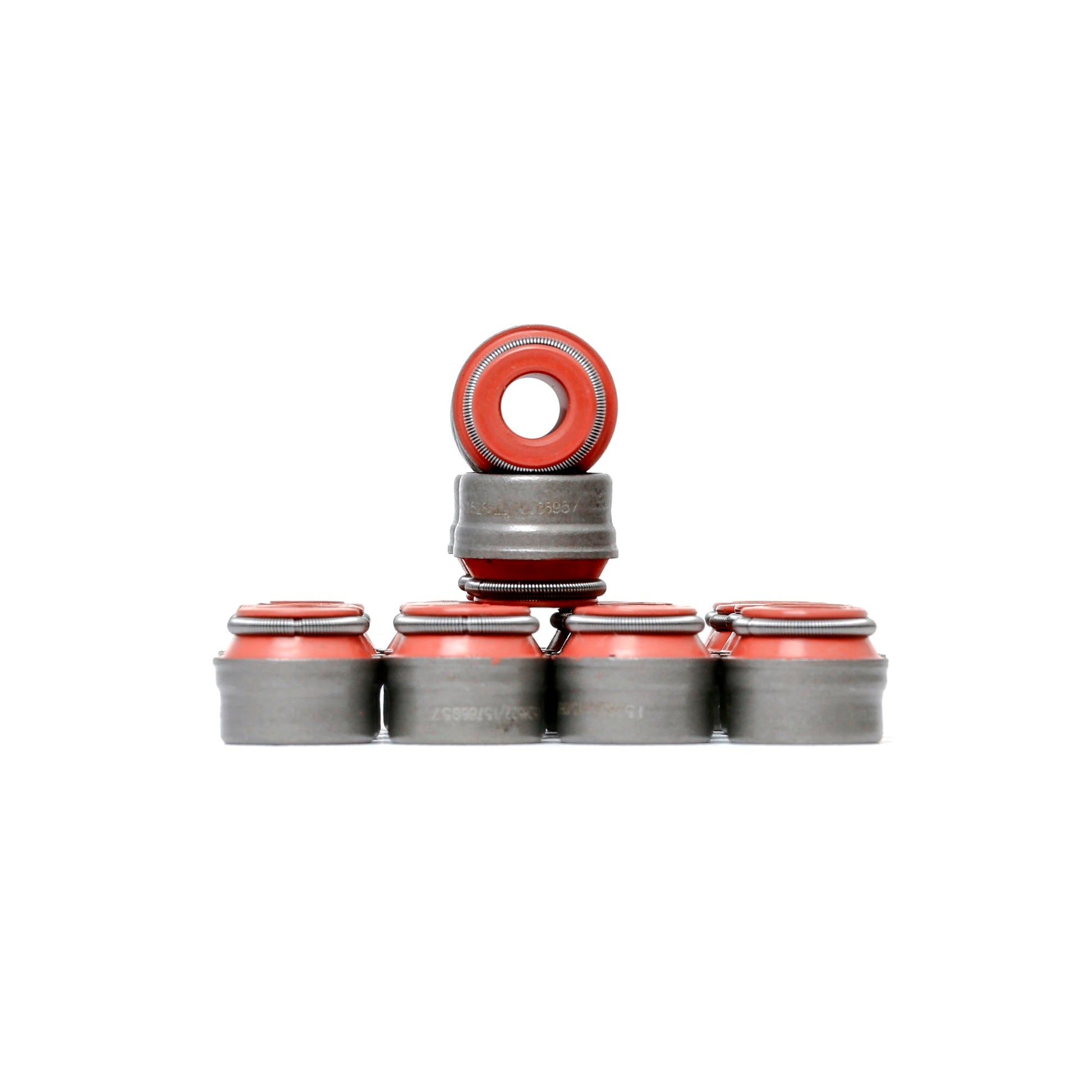

Mercedes Sprinter Valve Stem Seal Set – Elring | VS30 2.0L OM654 Diesel | #6540532200ELR (2023+)

Worn valve stem seals on a VS30 Sprinter allow oil to migrate past the valve guides and into the combustion chamber — producing blue-gray smoke at cold start, increasing oil consumption between changes, and accelerating carbon buildup on the intake valves and injector tips that can't be cleaned without disassembly. This is the Elring valve stem seal set for VS30 Sprinters equipped with the 2.0L OM654 diesel engine, a complete set for full cylinder head renewal during valve train or head gasket service.

What This Part Does

Valve stem seals are precision-fitted elastomeric seals that press onto each valve guide boss in the cylinder head. They allow the valve stem to move freely through its full lift cycle while metering a controlled amount of oil to the stem-to-guide interface — just enough to lubricate without allowing excess oil to flow into the combustion chamber. On the OM654's DOHC 16-valve head, there are 16 valve stem seals — one per valve, covering both intake and exhaust positions. The seals must maintain their sealing lip geometry and elasticity through repeated thermal cycles from cold starts to full operating temperature across hundreds of thousands of valve openings. When the seal's elastomeric lip hardens with age, cracks, or loses its press fit on the guide boss, oil bypasses the seal during valve motion — entering the combustion chamber on intake strokes and burning with the fuel charge, producing characteristic blue-gray smoke and progressive oil consumption.

Common Symptoms of Worn Valve Stem Seals

• Blue-gray smoke from the exhaust at cold start that clears after the engine warms up
• Oil consumption increasing between service intervals with no visible external leak
• Spark plug fouling or injector tip carbon deposits from oil entering the combustion chamber
• Blue smoke under deceleration when intake manifold vacuum pulls oil past worn seals
• Rough idle or cylinder misfires from oil-fouled injector spray patterns

When to Replace

Replace when valve stem seal failure is confirmed by a cylinder leak-down test combined with the characteristic cold-start blue smoke symptom. Also replace as a complete set of 16 any time the cylinder head is removed for head gasket service, valve seat reconditioning, or camshaft replacement — the seals are inexpensive relative to the labor cost of a second head removal if a seal fails after reassembly. Always replace intake and exhaust seals together as a matched set.

VS30 OM654 Specific — VIN Verification Required

This valve stem seal set is for VS30 Sprinters equipped with the 2.0L OM654 diesel engine. It is not compatible with VS30 models equipped with the 3.0L OM642 or NCV3 Sprinters equipped with the 2.1L OM651. Always verify your engine code and VIN before ordering. Contact us and we'll confirm fitment before you buy.

Fitment

• 2023+ Mercedes-Benz Sprinter 2500 – 2.0L OM654 Diesel (VS30)
• 2023+ Mercedes-Benz Sprinter 3500 – 2.0L OM654 Diesel (VS30)
• 2023+ Mercedes-Benz Sprinter 3500XD – 2.0L OM654 Diesel (VS30)

✔ Complete set of 16 seals — covers all intake and exhaust valve positions ✔ Always replace as a full set during any cylinder head service

Part Numbers

• Mercedes OEM: 6540532200 / A6540532200 / 654-053-22-00
• Manufacturer: Elring
• SKU: 6540532200ELR
