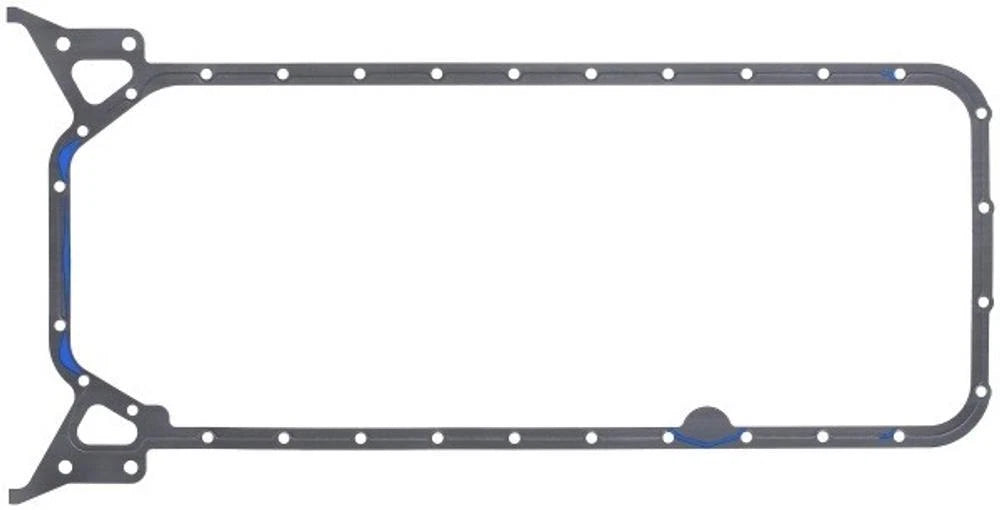

Mercedes Sprinter T1N Oil Pan Gasket – Elring OEM | OM612 & OM647 2.7L | #6470140022 (2001–2006)

DESCRIPTION:

An oil pan gasket leak on the T1N Sprinter might start as a minor seep, but left unaddressed it becomes a persistent oil loss problem that contaminates the undercarriage, attracts debris, and eventually leads to low oil levels if not caught. This Elring OEM oil pan gasket for the T1N Sprinter with the OM612 and OM647 5-cylinder diesel engines restores a clean, leak-free seal between the oil pan and engine block — a must-replace any time the oil pan is removed.

What This Part Does

The oil pan gasket seals the mating surface between the bottom of the engine block and the oil pan, containing the engine oil supply and maintaining lubrication system pressure. On the T1N's 5-cylinder diesel, the gasket is exposed to constant thermal cycling, oil contaminants, and vibration over its service life — all of which degrade the sealing material over time. A compromised gasket causes oil to seep from the pan rail, typically pooling under the engine at rest.

When to Replace

Replace any time the oil pan is removed for any reason — oil pan drain plug repair, inspection, or oil pump service. Also replace when persistent oil leaks are traced to the pan rail area. Never reuse a compressed oil pan gasket. Always clean both mating surfaces thoroughly and apply correct torque spec to the pan bolts during installation.

Fitment

• 2001–2003 Dodge Sprinter 2500/3500 – 2.9L L5 Diesel (OM612)
• 2004–2006 Dodge Sprinter 2500/3500 – 2.7L L5 Diesel (OM647)
• 2001–2006 Freightliner Sprinter 2500/3500 – OM612 & OM647

Always verify your VIN and engine code before ordering. Contact us and we'll confirm fitment before you buy.

Part Numbers

• Mercedes OEM: 6470140022 / A6470140022 / 647-014-00-22
• Elring OEM
• Cross Reference: 6120140122, 5175310AA, 5080064AA
• SKU: 6470140022ELR
