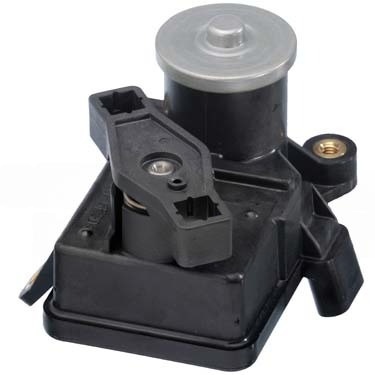

Mercedes Sprinter Swirl Flap Actuator Motor – Pierburg OEM | OM642 3.0L V6 | #6421500594 (2009–2017)

DESCRIPTION:

The swirl flap actuator motor is the most common single failure point in the OM642 intake manifold system — and replacing it at the first sign of trouble is the difference between a quick fix and an expensive manifold replacement. Part number 6421500594 is the updated Pierburg actuator motor for 2009–2017 NCV3 Sprinters with the OM642 3.0L V6, superseding the earlier 6421500494. If your Sprinter is throwing swirl flap fault codes, this is the correct replacement for later-model applications.

What This Part Does

The swirl flap actuator motor (also known as the intake manifold runner control motor or setting motor) electrically positions the swirl flaps inside the intake manifold to optimize air turbulence at the intake ports. At lower RPMs, the flaps restrict airflow to increase swirl and improve combustion efficiency and torque. At higher RPMs, they open fully for maximum airflow. When the motor fails, the flaps can stick open or closed — and if the plastic linkage breaks, debris enters the engine.

6421500594 vs. 6421500494 — Which One Do You Need?

These are two distinct Pierburg motor versions covering different production runs of the OM642. The 6421500594 is the later updated unit for 2009–2017 applications. The 6421500494 covers earlier applications. Always verify your stamped part number or VIN before ordering to ensure you receive the correct motor for your specific manifold.

Why Replace This Before It Fails

A failing swirl flap motor typically triggers a P2004 or P2006 fault code and may cause rough idle, reduced power, or hesitation before physical failure occurs. Replacing the motor proactively is far less costly than replacing an entire intake manifold after a flap breakage. This is one of the most recommended preventive maintenance items on any high-mileage OM642 Sprinter.

When to Replace It

Replace immediately upon any swirl flap-related fault code (P2004, P2006), or proactively as part of a scheduled high-mileage service. Also replace any time an intake manifold is being serviced to restore the full swirl flap system to spec.

Fitment

• 2009–2017 Freightliner Sprinter 2500/3500 – 3.0L V6 Diesel (OM642)
• 2010–2022 Mercedes-Benz Sprinter 2500 – 3.0L V6 Diesel (OM642)
• 2010–2022 Mercedes-Benz Sprinter 3500 – 3.0L V6 Diesel (OM642)
• 2018–2022 Mercedes-Benz Sprinter 3500XD – 3.0L V6 Diesel (OM642)

Always verify your stamped part number and VIN before ordering. Contact us and we'll confirm fitment before you buy.

Part Numbers

• Mercedes OEM: 6421500594 / A6421500594 / 642-150-05-94
• Pierburg: 7.01132.12.0
• Cross Reference: 642-150-06-94, IMA110, 911-920
• Supersedes: 6421500494
