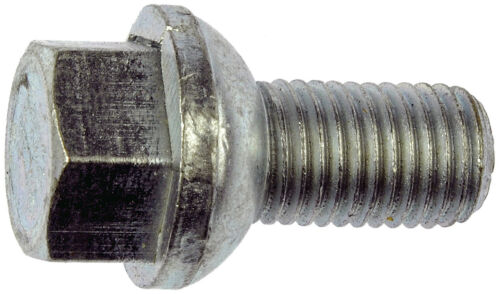

Mercedes Sprinter Lug Bolt – OEM Steel Wheel | M14x1.5 | #0009902407 (2010–2023)

DESCRIPTION:

Lug bolts are the last line of defense between your wheels and the road — and on the Sprinter's 6-lug hub, using the wrong bolt is a serious safety risk. This is the genuine Mercedes OEM lug bolt for NCV3 and VS30 Sprinters equipped with factory steel wheels. It's the correct length, thread pitch, and seat geometry for secure, torque-spec installation on OEM steel rims.

What This Part Does

The lug bolt threads into the wheel hub and clamps the wheel against the hub face. The Sprinter uses a bolt-in design rather than studs with nuts, meaning the bolt itself passes through the wheel and engages the hub directly. The correct bolt length and seat type are critical — a bolt that's too short, too long, or with the wrong seat geometry will either not torque properly or damage the wheel bore.

Important: Steel Wheel Use Only

This bolt is specifically designed for OEM Mercedes factory steel wheels. Factory Mercedes lug bolts are not compatible with aftermarket wheels, which typically require a different seat geometry (acorn vs. ball seat). Always confirm your wheel type before ordering.

Bolt Specifications

• Thread: M14x1.5
• Overall Length: 58mm
• Shank Diameter: 14.5mm
• Seat Type: Ball seat (for OEM steel wheels)
• Hex Size: 17mm

When to Replace

Replace lug bolts if threads are stripped or damaged, if a bolt has been overtorqued or cross-threaded, or when replacing steel wheels. Always replace as a set on any affected axle — never mix old and new hardware on the same hub.

Fitment

• 2010–2023 Mercedes-Benz Sprinter 1500 – Steel Wheels
• 2010–2023 Mercedes-Benz Sprinter 2500 – Steel Wheels
• 2010–2023 Mercedes-Benz Sprinter 3500 – Steel Wheels

Part Numbers

• Mercedes OEM: 0009902407 / A0009902407 / 000-990-24-07
